PCR Cabinet PCR1000

Products

Lab & Analytical

Lab & Analytical

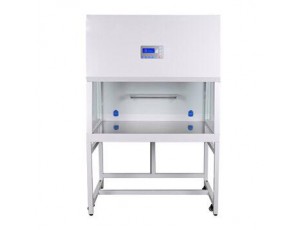

PCR Cabinet PCR1000

LOGIN FOR MORE INFO

• LED display (LED display for PCR1000).

• UV sterilization system.

• HEPA filter efficiency 99.999% at 0.3μm.

• Interlock function:UV lamp only can be switched on when the front window is closed, ensuring operator safety.

• UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.

Share

More Information

TECHNICAL PARAMETERS:

Model	PCR-800	PCR-1000	PCR-1200	PCR-1300	PCR-1500
External Size (WDH)	800700 1770mm	1000705 1770mm	1200700 1770mm	1300700 1770mm	1500700 1770mm
Internal Size (WDH)	700595 550mm	900595 560mm	1100595 550mm	1200595 550mm	1400595 550mm
Work Surface Height	750mm
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating
Material	Work Table: 304 stainless steel
Front & Side Windows	5mm toughened glass , anti-UV
Front & Side Windows	Motorized	Manual	Motorized	Motorized	Motorized
Max Opening	300mm	320mm	300mm	300mm	300mm
Pre-Filter	Polyester fiber, Washable
HEPA Filter	99.999% efficiency at 0.3μm.
Airflow Velocity	0.3-0.5m/s, speed adjustable
Noise	≤65dB
UV Lamp	20W*1	20W*2	30W*1	30W*1	40W*1
UV Lamp	Emission of 253.7 nanometers, with UV timer
Illumination Lamp	LED 8W*2	40W*1	LED 12W*2
Illumination	≥1000Lux
Shelf with IV bar	Stainless steel, 50215050mm (WDH)
caster	Universal caster with leveling feet
Consumption	400W	300W	600W	600W	600W
Waterproof Socket	Two, total load≤500W
Power Supply	AC 220V±10%, 50/60Hz;110V±10%,60Hz
Standard Accessory	UV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar
Gross Weight	130kg	150kg	170kg	180kg	200kg
Package Size (WDH)	950930 1370mm	1150930 1370mm	1350930 1370mm	1450930 1370mm	1650930 1370mm
